 Magnetic X-ray Imaging

Modern magnetic materials with applications to magnetic storage and sensor technologies are currently focussing on thin films and multilayered systems often accompanied with a lateral micropatterning. Imaging magnetic microscopic processes on a sub-micrometer length and sub-ns time scale provides key information that will contribute significantly to a thorough understanding of the underlying physics and will support current technological developments.


Magnetic transmission soft X-ray microscopy offers a superior combination of the following features which match ideally the needs both for fundamental studies in magnetism and to characterize technologically relevant magnetic systems

  • high lateral resolution (Fresnel zone plate optical elements)

  • sub-ns time resolution (pulsed time structure of Synchrotron radiation)

  • elemental specificity (XMCD contrast)

  • high sensitivity to thin layers (large magnetic absorption cross section)

  • magnetisation reversal studies (recording images in applied magnetic fields)

  • large field of view (typical tens of microns)

  • short exposure times (typical secs per image)






Magnetic transmission X-ray microscopy (MTXM) uses X-ray magnetic circular dichroism as magnetic contrast mechanism. In the vicinity of element-specific binding energies of inner core levels, such as 2p3/2 and 2p1/2 levels which correspond to L3 and L2 absorption edges, the X-ray absorption coefficient depends strongly on the relative orientation between the helicity of the photons and the projection of the local magnetization onto the photon propagation direction.

With phase sensitive X-ray optics, also magnetic phase contrast imaging has been démonstrated recently

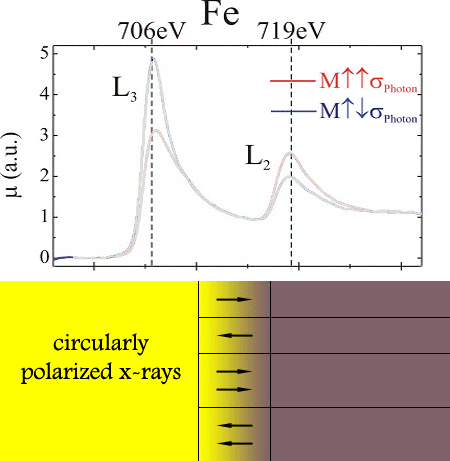

Principle of MTXM

Illuminate a ferromagnetic specimen with circularly polarized X-rays at a specific wavelength and record the transmitted photons with a high resolution soft X-ray microscope.



Examples of Recent Results

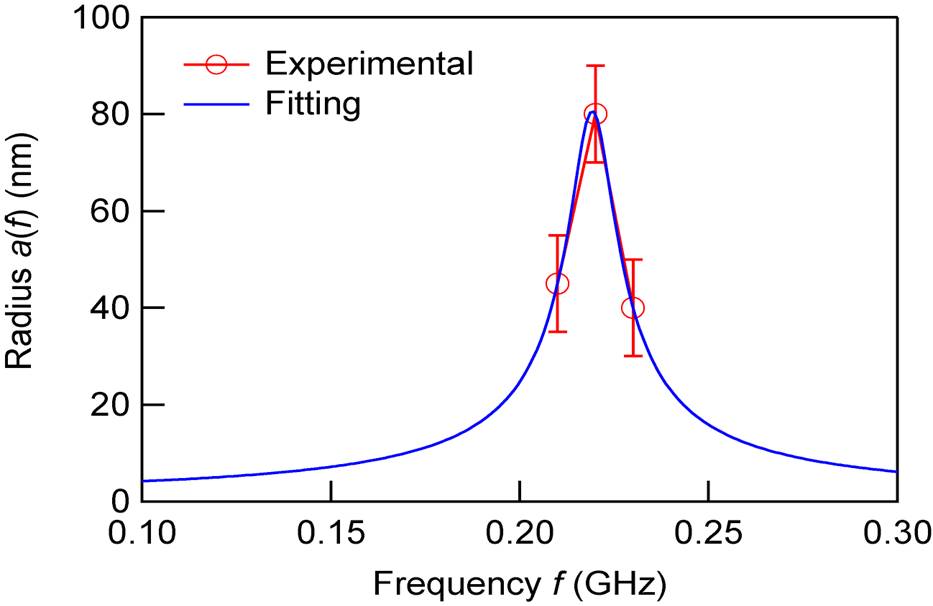

S. Kasai, et al., Phys Rev Lett 107, 237203 (2008)

In collaboration with U Kyoto, U Chofu and U Osaka, Japan

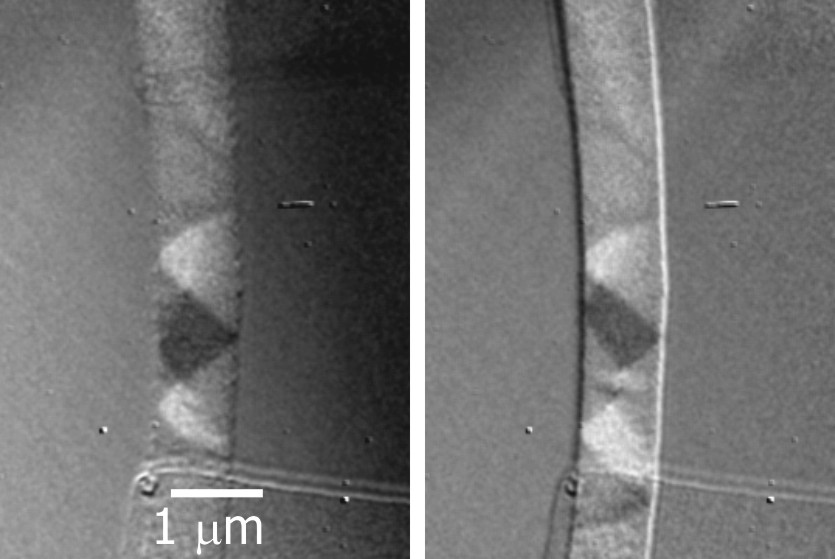

Direct Imaging of Stochastic Current Induced Domain-Wall Motion

G. Meier, et al., Phys. Rev. Lett. 98, 187202 (2007), also selected for Physical Review Focus

In collaboration with and

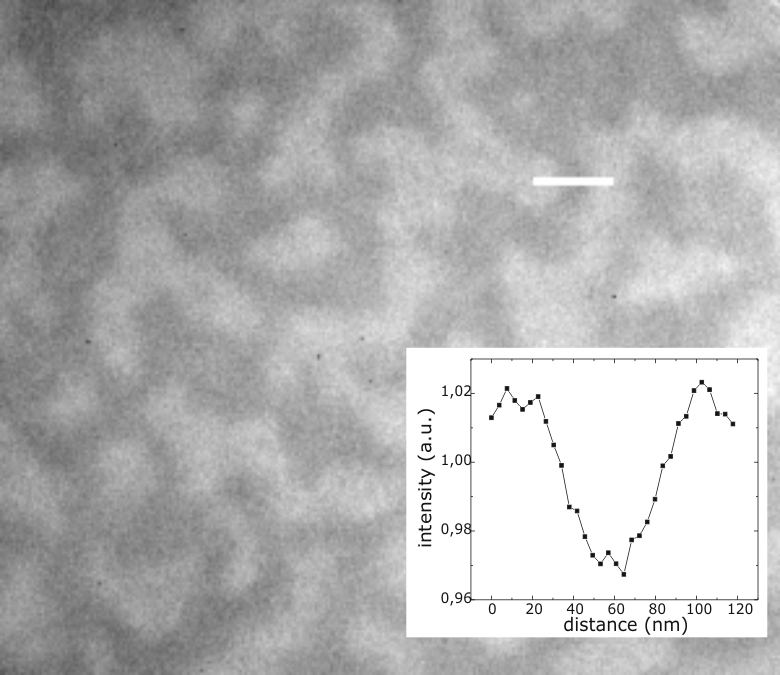

Imaging at fundamental magnetic length scales

With a spatial resolution of 15nm magnetic soft X-ray microscopy can probe local hysteresis behaviour on a granular length scale in a 50 nm thick (Co83Cr17)87Pt13 nanogranular alloy film recorded at the Co L3 absorption edge (777eV). Inset: Intensity profile across a magnetic domain (white line) proofing 15nm spatial resolution.

D.-H. Kim, et al. J. Appl. Phys. 99, 08H303 (2006) also selected in Virtual Journal of Nanoscale Science & Technology, 13(17) May 1, 2006

In collaboration with




Domain nucleation in nanogranular CoCrPt alloys

The image shows the magnetic domain pattern in a 50 nm thick (Co83Cr17)87Pt13 nanogranular alloy film recorded at the Co L3 absorption edge (777eV) in an external magnetic field of 0 Oe.

M.-Y. Im, et al. Appl. Phys. Lett. 83(22) (2003) 4589-4591  also selected in Virtual Journal of Nanoscale Science & Technology, 8(23) December 8, 2003

In collaboration with

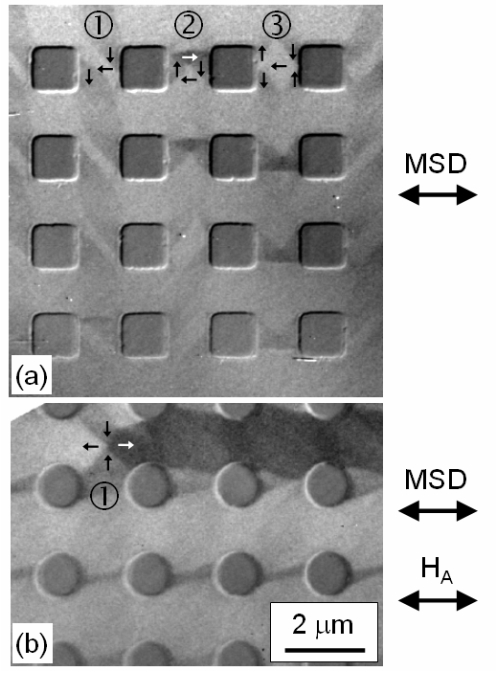

Cobalt antidot arrays

Co antidot arrays with 2 mm period were fabricated on X-ray transparent membranes and imaged with MTXM:

(a) as-grown flux closure states in array with square holes: S-state at position 1, Landau state at position 2, flower state at position 3

(b) a domain chain forms on application of a magnetic field with the end of the chain comprising four 90º walls.

L. Heyderman et al., J. Magn. Magn. Mat 316 99 (2007)

In collaboration with at

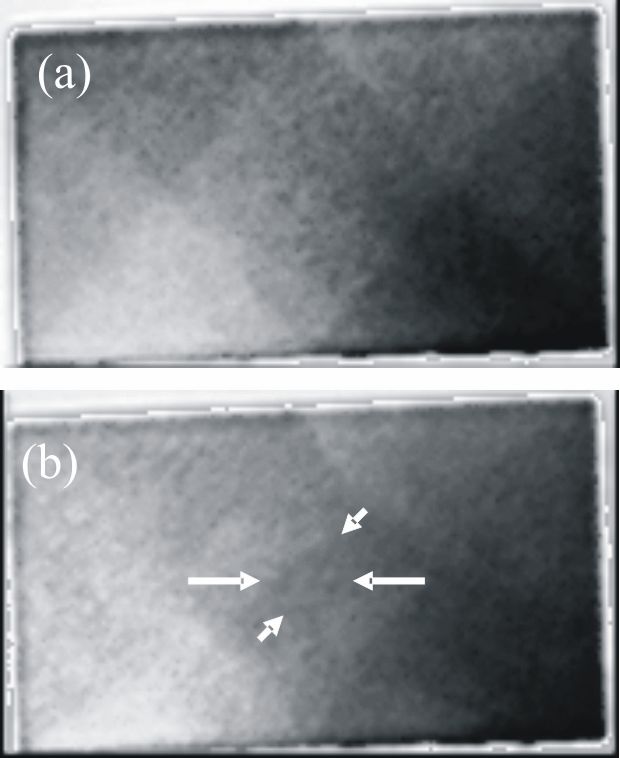

Fast Magnetization Dynamics in Patterned Elements

a) Seven domain Landau configuration in a 50nm thin 2x4 mm2 rectangular PY element before a magnetic excitation.

b) Domain configuration 2ns after the excitation pulse.

P. Fischer, et al   J. Magnetism and Magnetic Materials (2007) 310(2) pt 3 (2007) 2689-2692

In collaboration with
